UV protective film, clear transparent
- self-adhesive
- Indoor assembly
Price per m² from: €36.90 Price per m²: €33.21 Price per m²: €36.90 incl. VAT plus shipping costs. Item no. 511000
Delivery time approx. 3-6 days
CNC cutting accurate to the millimetre
free assembly tool
| Glare reduction | without |
| UV protection | with (> 99%) |
| Property | transparent |
| Liability | self-adhesive |
| Mounting side | Indoor assembly |
| Protection from | Radiation |
| Privacy screen | without |
| Sun protection | low (< 25%) |
Start WhatsApp chat

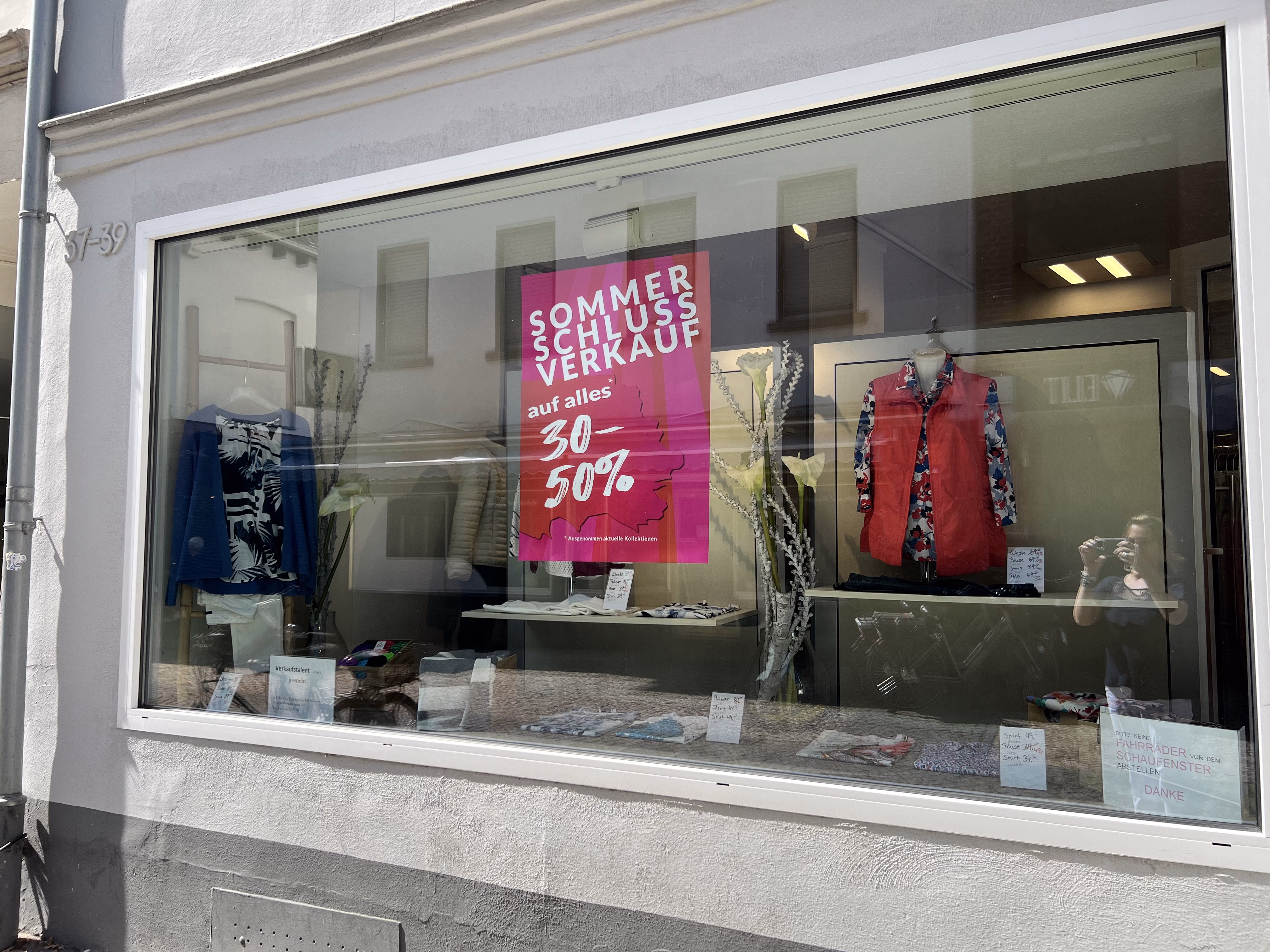

UV protection film protects against fading
This UV protection film is used wherever the fading of furniture, clothing, carpets or shop window displays is to be effectively delayed. The film slows down the fading of the objects in the best possible way by a factor of 3-4. The very high UV protection of approx. 99.5% ensures the colour fidelity of your objects. The glass remains clearly transparent with the window film applied.
Sun protection function
In addition, this window film offers a certain heat protection, as the solar radiation is slightly reduced. The rejection of the total solar energy (reduced radiation on the glass) is 14%.
The decisive factor, however, is the unrivalled high UV protection of about 99.5%, which is even slightly higher than that of sun protection films.
Protection against bird strike
Effects due to UV absorption
UV-absorbing window surfaces create a "colour cast" for the bird in the mirrored or translucent area and can therefore contribute to the approaching bird avoiding the mirrored/translucent area. If only partial areas of the window are absorbing in the UV range, they can then create a "colour contrast" to the otherwise mirrored/translucent area due to their UV absorption - the image is partly "colour cast" for the bird, partly not. Parallax during the bird's approach then allows it to perceive the window pane itself.
Effects due to UV reflection
If the bird perceives the UV-reflective window as predominantly translucent (non-reflective), the image reflected in the UV range overlaps the translucent area and the bird avoids this confusing space. If the window appears predominantly reflective to the bird, the UV reflection increases the realism of the image and thus tends to have a counterproductive effect. If only partial areas of the window are reflective in the UV range, they can create a "colour contrast" (case "specular") or a "reflection contrast" (case "translucent") to the other reflected/translucent area - the image is partly "colour cast"/"specular" for the bird, partly not. Parallax during the bird's approach then allows it to perceive the window pane itself.
Source:Wikipedia on the subject of bird strike
Included in delivery
You should definitely order the transfer concentrate, art. no. 020010 additionally. It makes the installation easier and leads to a better result. Alternatively, you can also use a pH-neutral cleaner. This must be pH-neutral to prevent streaks from forming together with the film adhesive!Any offcuts are not included in the scope of delivery.
Manufacturer's guarantee
The manufacturer grants a guarantee of 10 years on this UV protective film when installed vertically and on sloped glazing (skylights) from a roof slope of 25°. This guarantee covers flaking, yellowing and demetallisation of the film.
Durability
Depending on various factors, the durability of the films is up to 14 years in Central Europe. In the case of sloped glazing such as skylights with a roof pitch of 25° or more, this durability is reduced accordingly due to the stronger solar radiation and the higher exposure to environmental influences.
The durability of this film when installed outdoors is 2 to 3 years in Central Europe, depending on various factors.
| Properties | Indoor installation | ||
|---|---|---|---|
| Light | Reflection | Indoor | 9% |
| Outdoor | 9% | ||
| Transmission | 90% | ||
| Solar | Reflection | 9% | |
| Absorption | 7% | ||
| Transmission | 84% | ||
| Shading coefficient | 0,90 | ||
| Heat transmission coefficient (U-value) | n.a. | ||
| Total energy transmittance (g-value) | 0,85 | ||
| Emissivity | n.a. | ||
| UV reduction | 99,5% | ||
| Glare reduction | 13% | ||
| Total energy rejection (exterior) | 14% | ||
The values of the properties were determined by the film manufacturer. They have been calculated on 3 mm glass using the appropriate methodology and are subject to variations in process conditions in industrial production. They are for estimation purposes only.
| Technical data | |
|---|---|
| Material | PET / PVC composition |
| Film thickness | approx. 50 µm |
| Adhesive | Pressure sensitive adhesive system |
Mounting recommendation
Based on technical data and extensive experience, we can recommend mounting on the following vertically installed glass types:
| Glass type | Number of panes | mainly installed | U-value W/(m²K) | Interior installation |
|---|---|---|---|---|
| Single glazing | 1 (-fold) | until 1978 | 5,7 - 5,8 | yes |
| Double glazing | 2 (-fold) 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today 1978 - 1994 |
3.0 - 3.4 1.2 - 2.5 2.1 - 2.4 |
yes yes yes |
| Thermal insulation glazing | 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today |
1.7 - 2.1 0.4 - 1.4 |
yes yes |
| Solar control glazing | 2 (-fold) 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today 1995 - Today |
1.4 - 2.0 1.0 - 2.5 0.5 - 1.3 |
yes yes yes |
These recommendations may still result in glass breakage due to various factors at the installation site. According to our AGB, §10 paragraph 3 we do not accept any liability for this.
General questions
Can I get a free foil sample?
Of course, please click on this link to access the corresponding order form. You are welcome to add to the list of items if you wish. There are no costs for you!
Will you also cut the film for me?
We cut each film to the exact millimetre according to the dimensions you enter. The cutting is free of charge. You can find detailed instructions on how to measure your panes here.
Alternatively, you can also cut your film by hand with a cutter knife. However, this requires a little manual skill, so you are usually better off using our free service.
Can you also cut a round blank or other geometry?
In general, almost all 2D shapes can be produced. Many geometries (e.g. triangles, trapezoids, circles) can be ordered directly via the online shop. To do so, please click on the orange rectangle to the right of the article image. You can then choose between many different shapes.
For shapes that are not specified, please send us a small sketch (photo) in which you specify the side lengths, radii or angles. Please contact us for this purpose.
Does the film also adhere to surfaces other than glass?
The window film adheres to all surfaces that are approximately as smooth as glass. When applying the film to plastic, please bear in mind that the adhesive may bond with the plastic, making it impossible to remove the film cleanly later.
How can I clean my window pane with the film in place?
You can keep your window pane clean as usual. The film should not be rubbed with sharp-edged objects (e.g. a brush).
You can find more information in our guide General care instructions for window films.
Can the film be removed without leaving any residue?
All window films can be removed without leaving any residue and without damaging the glass surface!
Below you will find detailed instructions on how to remove old window films.
Can you also print on films?
Unfortunately, we do not currently offer foil printing and do not have any partner companies with whom we can realise foil printing.
Assembly instructions for Solar control films (self-adhesive)
You will need the following items
- Plastic bottle with hand sprayer, adhesive tape, paper towels (not included)
- Transfer concentrate (not included)
- Glass cleaner (not included) or commercially available glass cleaner
- Installation squeegee and glass scraper blade (included free of charge in the delivery).
Installation tips
- Two people should carry out the installation!
- Do not install any film at temperatures on the installation side below +6° C.
- Fill the spray bottle with 0.5 litres of water and add the transfer concentrate (30 ml) (enough for approx. 6 to 7 m² of glass surface).
-
Thoroughly clean the glass with commercial or our glass cleaner!
Remove all sticky particles (e.g. paint or fly dirt) preferably with the glass scraper blade. No dirt residues should remain on the glass! - The sandblasting foil consists of the mostly white backing paper and the actual sandblasting foil.
Now place the sandblasting foil with the view side down on the glass pane or similar. You are now looking at the back of the film.
Then carefully and slowly peel off the backing paper at as shallow an angle as possible until it is about halfway along the entire length of the film. Cut the backing paper and stick it back onto the sandblasting film with a gap of about 2 cm to the remaining backing paper. - Now hold the in place while the 2nd person
starting from the corner, and at the same time spray the adhesive side of the that is now exposed with the liquid.
Afterwards, the glass pane (surface to be pasted) must be sprayed with the liquid. Do not be sparing with the liquid, the film and pane should be well wet. - Place the on the glass, the film should slide back and forth well, otherwise spray the glass again.
- Now spray the other side of the as well, this will make it easier for you to work with the mounting squeegee.
- Now press the liquid out evenly with the mounting squeegee from the centre to the right and to the left. Make sure that there is no residual water left under the film! Repeat this procedure several times to remove even invisible water residues. When doing this, wrap the supplied squeegee with a paper towel to avoid any scratches.
- Carefully wipe the edges and the foil with a soft cloth. If necessary, press the edges again with the mounting squeegee.
- Now let the dry for three days without touching it.
- Wait two weeks before cleaning the film for the first time and never use hard objects (brush or blade) to clean it. Commercially available glass cleaners can be used.
FAQ`s about the installation
Can I carry out the film installation alone?
For larger pieces, it is recommended that two people carry out the installation. This makes it easier to handle the film and place it on the pane.
How can I avoid dust inclusions under the adhesive back side?
In addition, do not lay the after peeling off (covers the adhesive side for transport) on the floor to get it wet. Rather, pull a table nearby to spray the film on. On the floor you will always stir up very fine dust particles, which will then settle on the adhesive side facing upwards. These dust particles can later show up on the pane under the , which is something to avoid.
Can I apply the without transfer concentrate?
We strongly advise against the use of water diluted with detergent. This can lead to streaking due to a reaction with the film adhesive.
Does the film have to be applied perfectly to the glass at the first attempt?
After mounting, small bubbles formed the next day
In any case, you should wait this time and do nothing. In most cases, the blisters disappear all by themselves!
How easy is it to remove the film?
It is possible that residues of the film adhesive remain in some places. These can be soaked with our adhesive remover or acetone and then removed again with a glass scraper or ceramic field scraper. You will find detailed instructions on how to remove window films on our homepage in the FAQ`s.
