MaZe textile fabric film
- self-adhesive
- Indoor assembly
Price per m² from: €38.06 Price per m²: €34.25 Price per m²: €38.06 incl. VAT plus shipping costs. Item no. 251110
Delivery time approx. 3-6 days
CNC cutting accurate to the millimetre
free assembly tool
| Protection from | Look |
| Privacy screen | medium |
| Light transmission | high |
| Transparency | medium |
| Design | other |
| Liability | self-adhesive |
| Mounting side | Indoor assembly |
Start WhatsApp chat

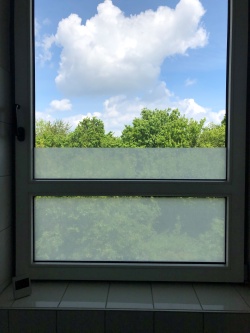

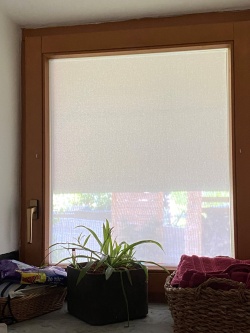

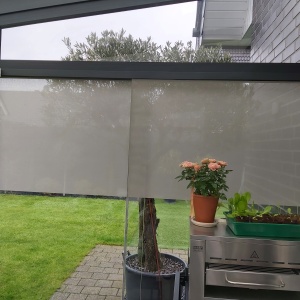

MaZe textile fabric film

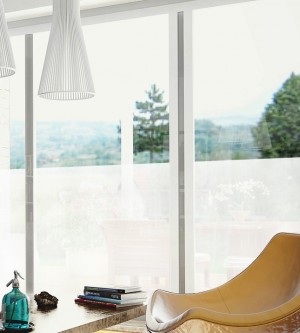

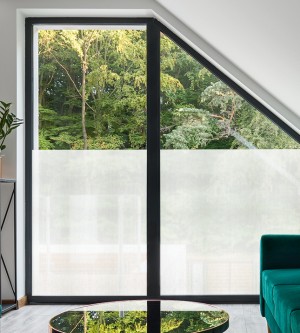

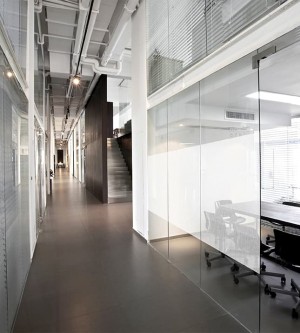

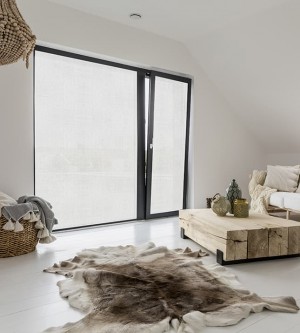

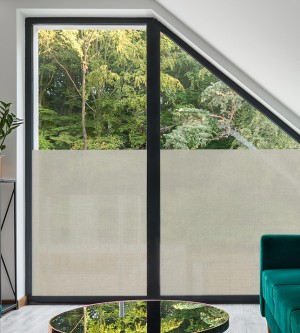

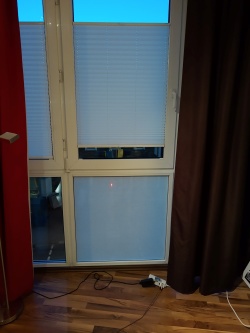

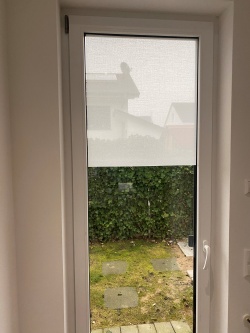

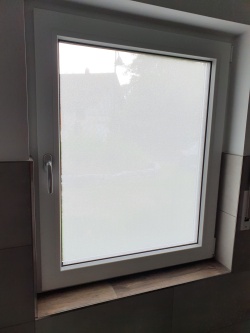

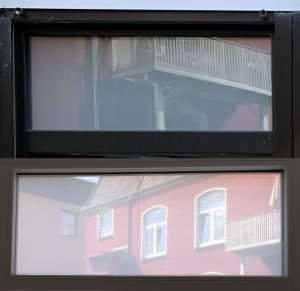

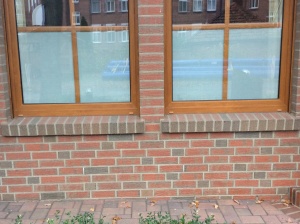

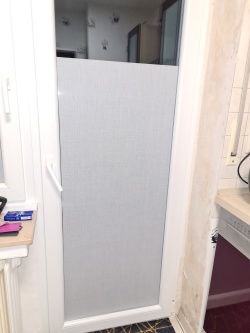

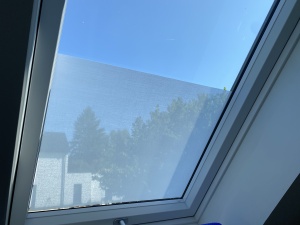

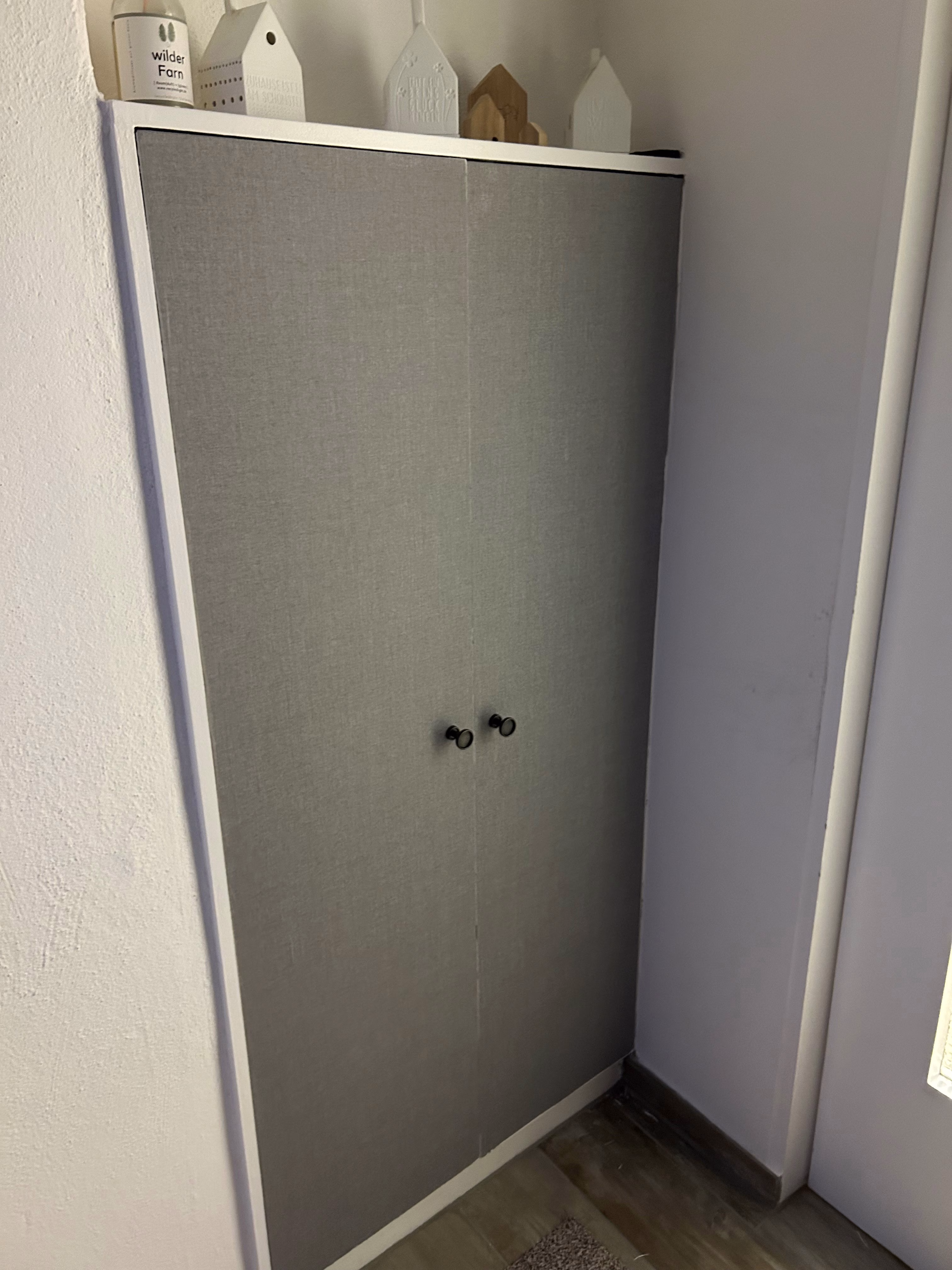

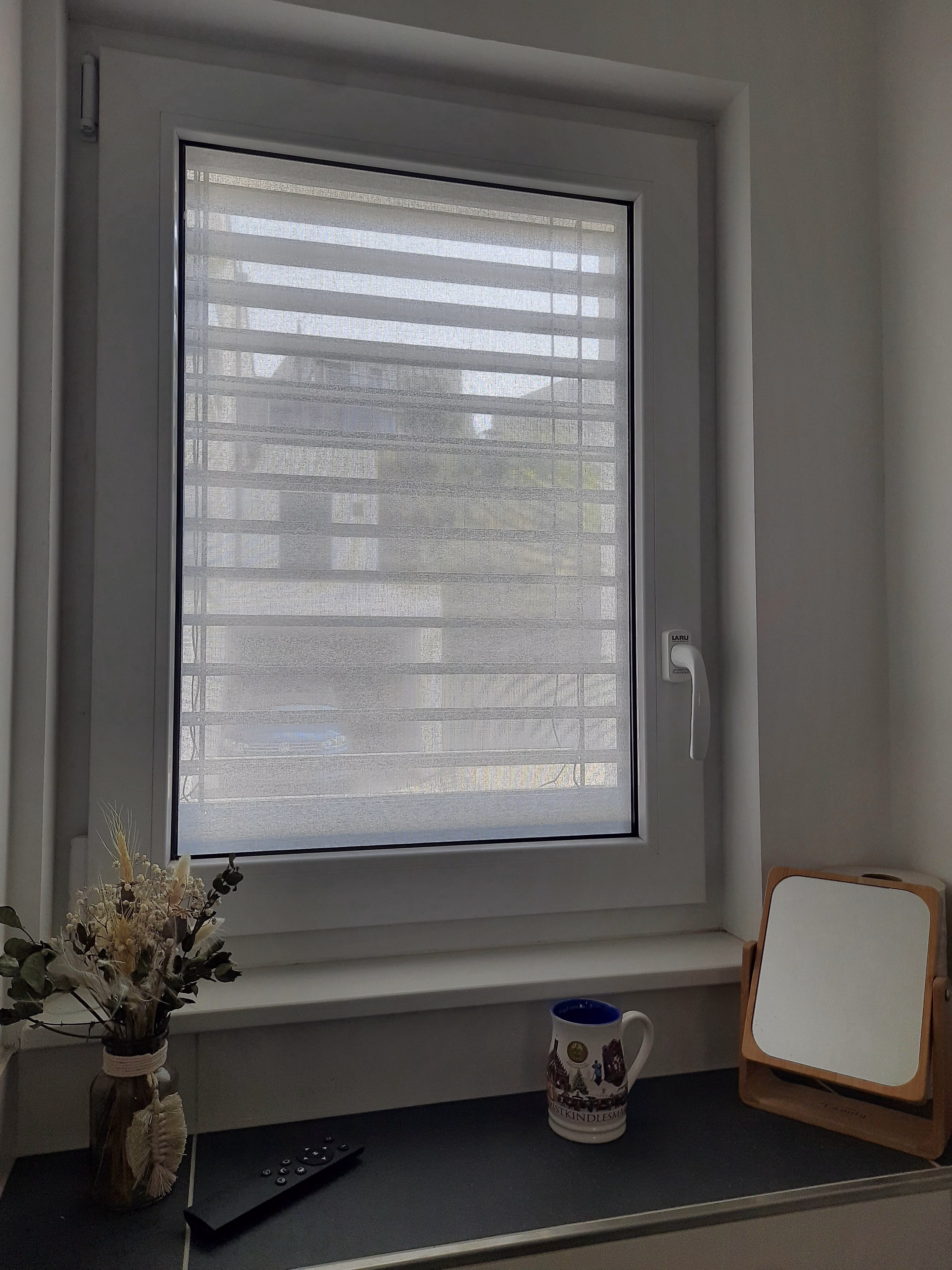

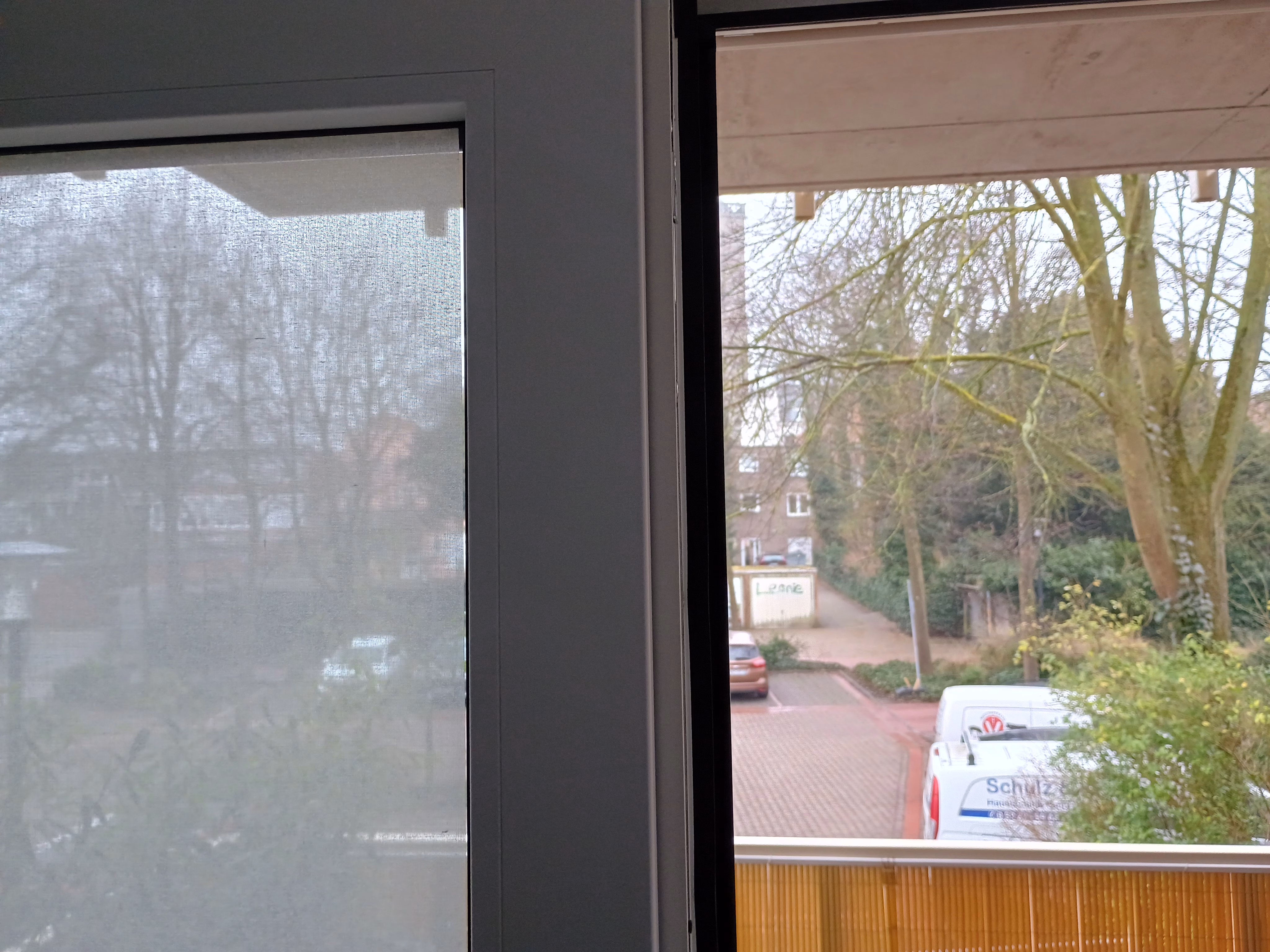

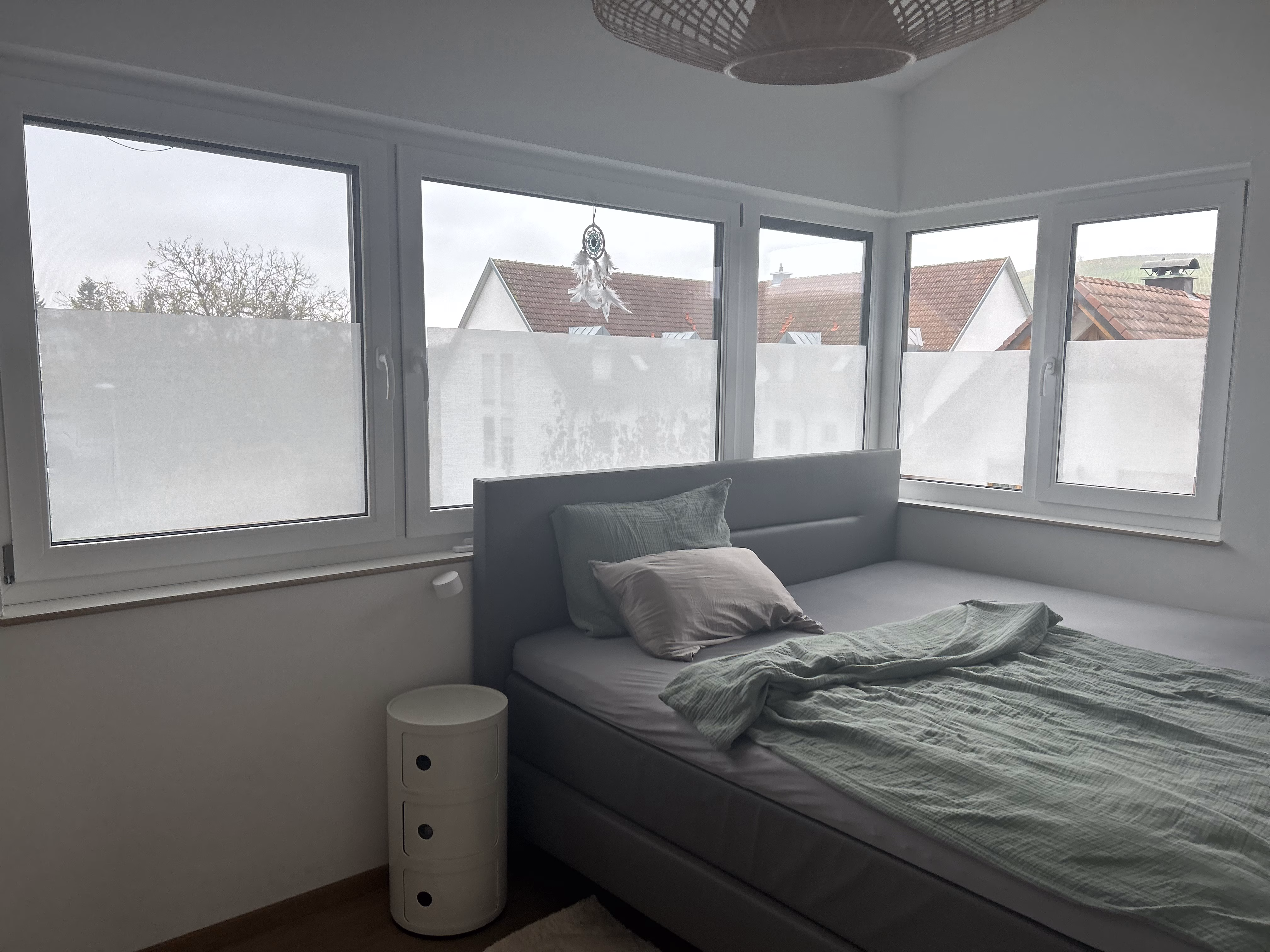

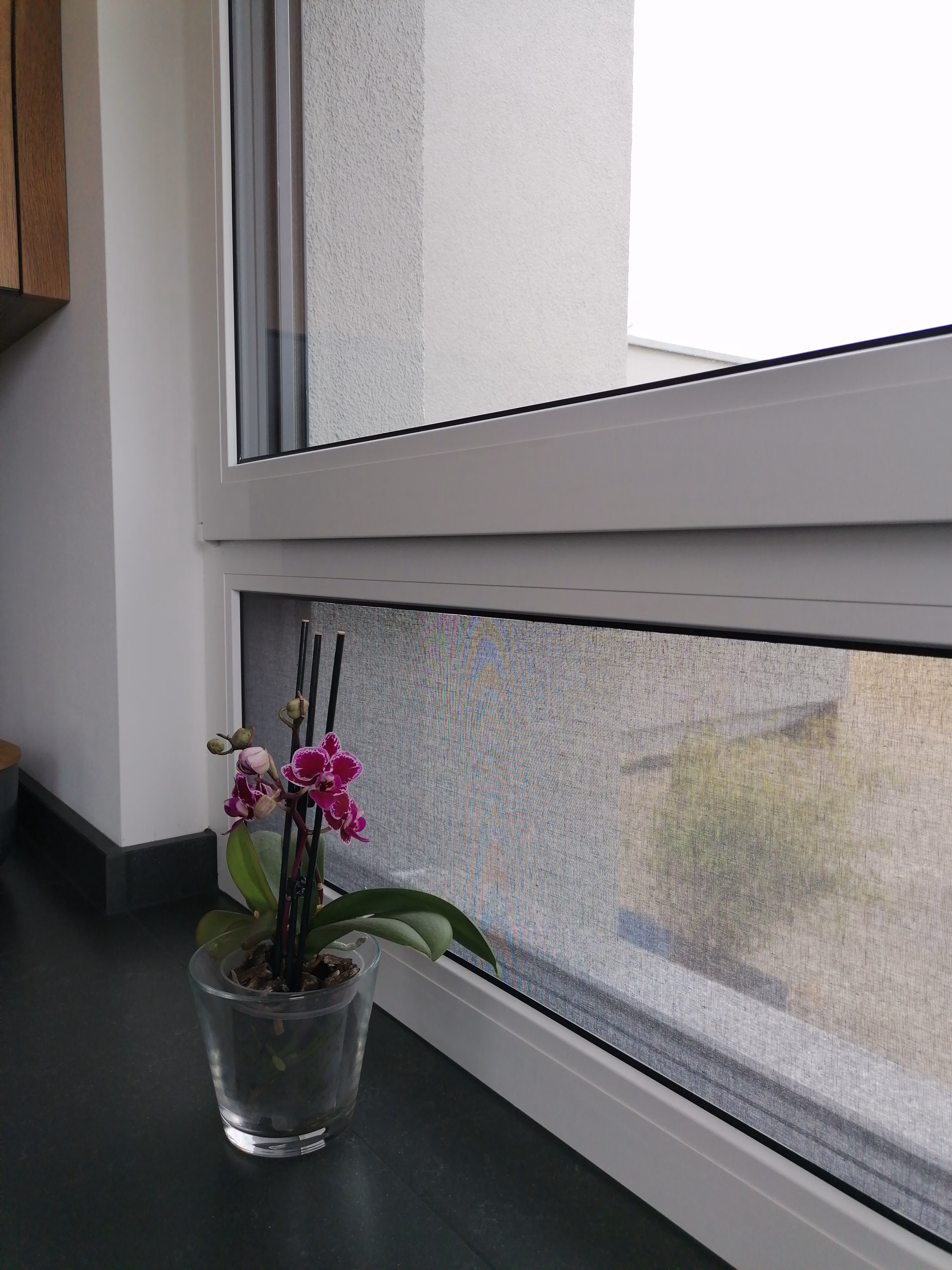

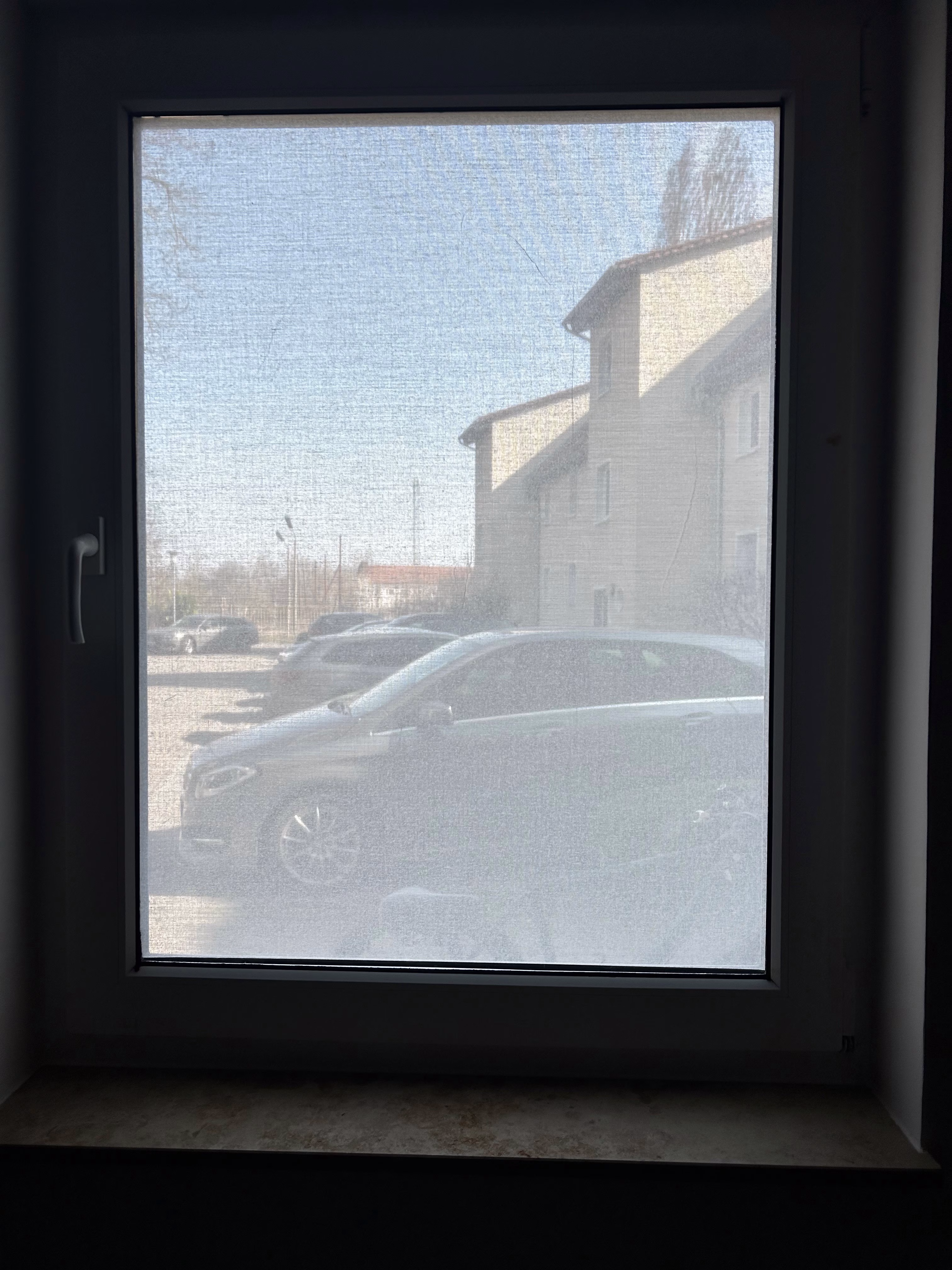

MaZe is a polyester fabric for coating glass panes and all smooth surfaces. It is self-adhesive, semi-transparent and still allows a lot of light into the room. While reducing sunlight and the temperature in the room, it provides privacy inside without blocking the view outside.
The adhesive textile is easy to install and, thanks to its high adhesive strength, we can cut it into any 2D geometry.
Properties
- Semi-transparent
- Self-adhesive
- Reduces heat indoors
- Adds privacy
- Easy to install
- Window decoration
- PVC-free
- Indoor use
- UV resistant
Cleaning - Do's and don'ts:
- Dust can be removed with a lint-free cloth or a hoover with a brush. Make sure the brush is clean.
- If dust particles do not come off easily, a sticky roller/lint remover like the one used for clothes can be used.
- Light stains such as mud can be removed with water and a microfibre cloth.
- Heavier stains can often be removed with a water-based/solvent-free cleaning solution. Due to the wide variety, it is recommended to test the product on a small area.
- Do not clean MaZe with a wet sponge, steam or water jet, it may lose its adhesive properties
- Do not remove and/or wash the product as the adhesive will lose its strength and cannot be reapplied.
- If a window is partially covered with MaZe, clean the part not covered with MaZe with a microfibre cloth and a window cleaning solution such as our Surface & Glass Cleaner. Be careful not to use too much glass cleaner as this may stain the fabric.
Removal
MaZe can be easily removed by lifting one corner and pulling back the fabric. The fabric cannot be used for this purpose after removal. Some adhesive may remain after removal. This can be easily removed.
Note on cut edges
Due to the production process, some ends of the fabric may protrude from the edge of a textile fabric sheet in the form of minimal threads. These threads were not cleanly caught and cut during the cutting process. Please do not pull on these ends, but carefully cut off protruding threads with fine scissors if necessary.
Complaints resulting from a sporadically unclean cut edge of the film are not grounds for complaint.
Manufacturer's warranty
MaZe has a minimum shelf life of 5 years, under the condition of correct installation and normal use. Caution and compliance with maintenance instructions are recommended to ensure durability.
Material
- Material: Woven polyester fabric
- Liner: Polyester
- Adhesive: Water-based acrylic

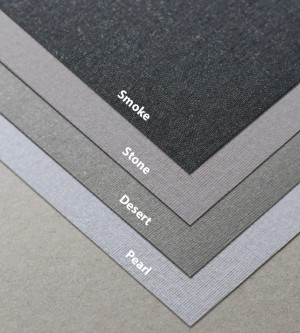

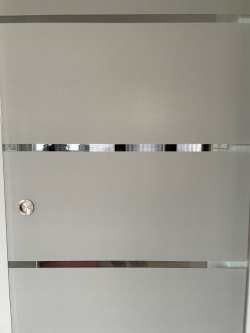

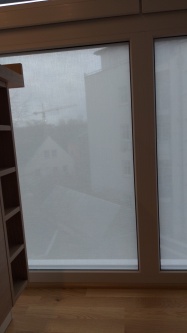

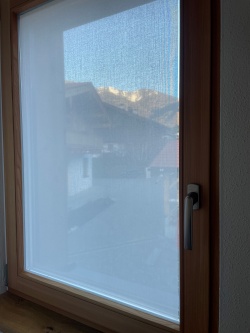

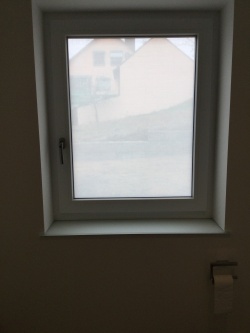

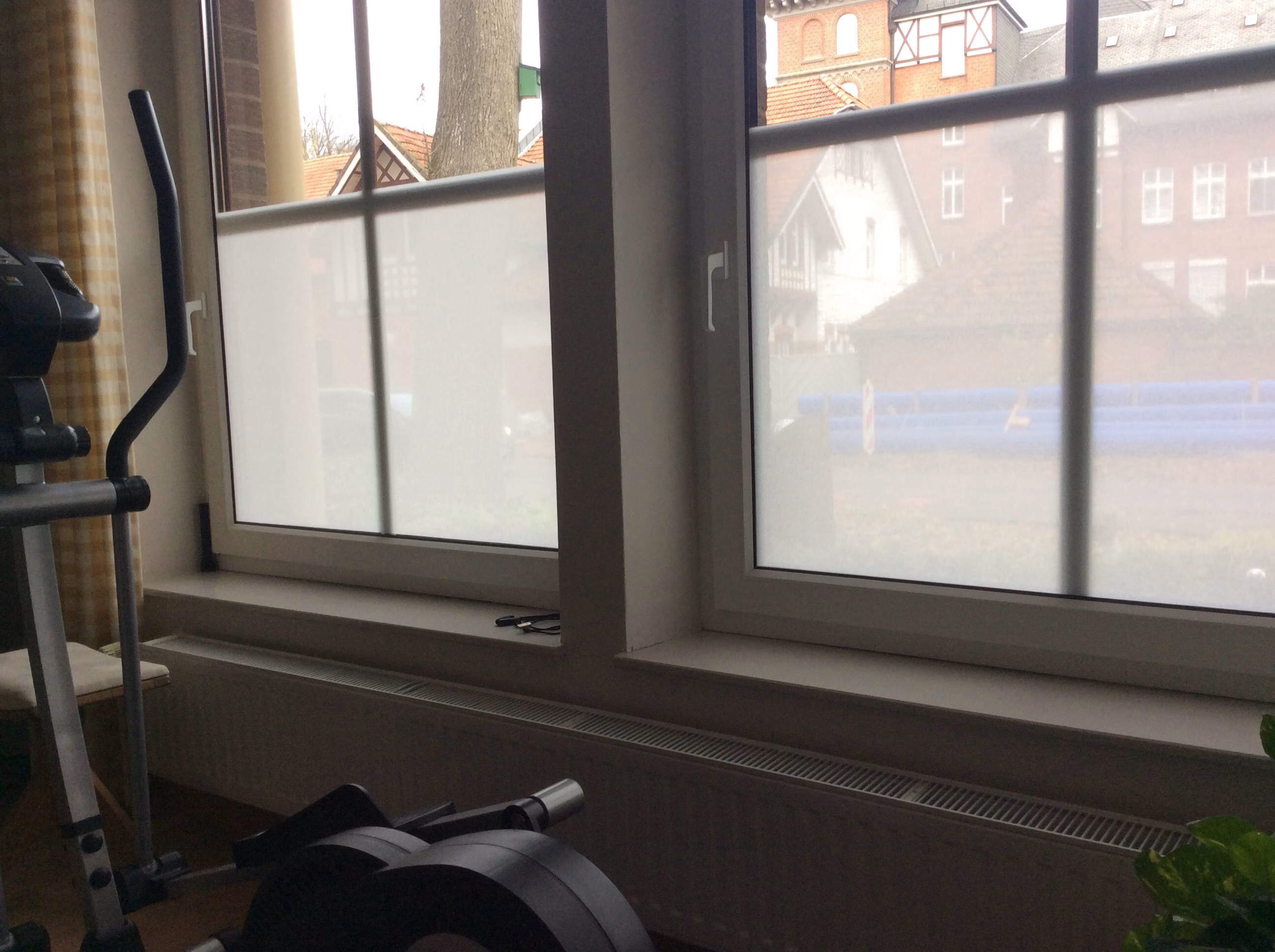

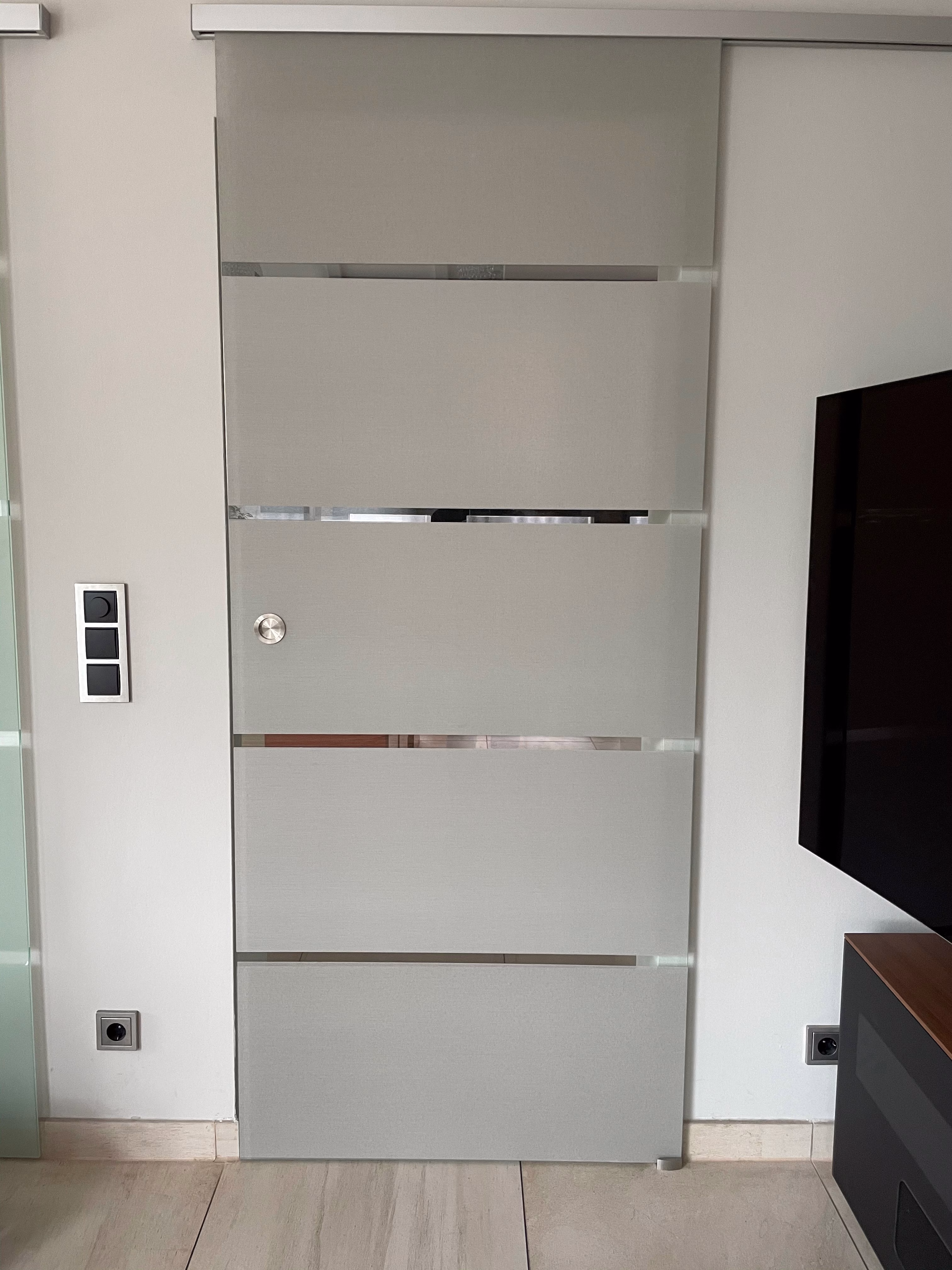

- Colours: Pearl (white), Desert (cream yellow), Smoke (anthracite)
- Material thickness: 245μ
- Total thickness: 350μ
| Glass type | Number of panes | mainly installed | U-value [W/(m²K)] | Interior installation |
|---|---|---|---|---|
| Single glazing | 1 (-fold) | until 1978 | 5,7 - 5,8 | yes |
| Double glazing | 2 (-fold) 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today 1978 - 1994 |
3.0 - 3.4 1.2 - 2.5 2.1 - 2.4 |
yes yes yes |
| Thermal insulation glazing | 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today |
1.7 - 2.1 0.4 - 1.4 |
yes yes |
| Solar control glazing | 2 (-fold) 2 (-fold) 3 (-fold) |
1978 - 1994 1995 - Today 1995 - Today |
1.4 - 2.0 1.0 - 2.5 0.5 - 1.3 |
yes yes yes |
These recommendations may still result in glass breakage due to various factors at the installation site. According to our AGB, §10 paragraph 3 we do not accept any liability for this.
Assembly instructions for textile fabric foils
First of all, an important note on handling
As this product is a textile fabric, it is unavoidable that individual threads may protrude at the edge. These threads must not be pulled off under any circumstances, as this will damage the edge of the textile fabric film. Carefully cut off the protruding threads with scissors. Complaints resulting from this cannot be accepted by us, as our quality control checks each individual film for integrity of the edges.The most important commandments of textile fabric mounting
- It is always a dry installation. Do not apply moisture or water.
- Do not stretch the textile fabric film too much. Stretching permanently deforms the material. Rather, let the adhesive textile slide gently onto the window.
- Never try to press out bubbles. Rather, remove the textile fabric where bubbles have formed and let it slide back onto the window to realign it.
- When the window hanging is in place, activate the adhesive by pressing the textile fabric film firmly once horizontally and once vertically (10 kg).
You need the following things
- Window cleaning utensils (not included)
- Glass cleaner (not included in delivery) or commercially available glass cleaner
- Mounting squeegee hard and glass scraper blade (included free of charge in the delivery)
The assembly is as simple as this
| 1. |
Thoroughly clean the glass pane or the surface to be glued with standard glass cleaner or our glass cleaner! Remove all adhesive particles (e.g. paint or fly droppings), preferably with the glass scraper blade. No dirt residue should remain on the glass! |
| 2. |
Peel off the backing film approx. 15 cm from the textile fabric film and fold it over. |
| 3. |
Align the textile fabric film precisely at the top of the window in the corners and attach it. Apply light pressure to the glass surface. Continue to peel off the backing film in approx. 15 cm sections from top to bottom and spread the textile fabric onto the glass from the centre outwards. |
| 4. |
If bubbles or wrinkles appear, peel off the textile fabric film without tensioning it upwards until the area of bubbles or wrinkles is loosened (A). |
| 5. |
Lightly reapply the textile fabric film to the window while painting the fabric by hand or with a squeegee. Never press wrinkles or bubbles outwards with squeegee, this may cause permanent deformation of the textile. |
| 6. |
When the textile fabric film has been applied to the window without bubbles or wrinkles, press down firmly with the squeegee supplied (approx. 10 kg pressure). Work from the centre of the window outwards (horizontally and vertically, see arrows), also the edges and corners, to activate the adhesive. Adhesive activation is a prerequisite to avoid bubble formation. |
| 7. |
The installation is then complete. |
